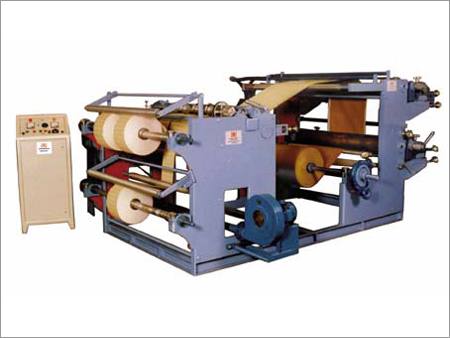

HR FP 502 Flexographic Printing Machine
Elegantly designed to print on low and high density- Polyethylene, Polyproplane, HM, HDPE, Aluminum Foil, Paper, ATM Rolls and other flexible packaging materials. (Available in 3, 4 & 6 Colours) To see video Click the below link http://www.youtube.com/watch?v=M0iY4u6w7k4
|
Technical Specification for 4 Colour
|
|
Working Width
|
24â (600 mm) (Also available from 16â to 42")
|
|
Floor Space 24" (600 mm)
|
17 ft x 6 ft x 8ft
|
|
Working Speed
|
60 meter (depending on materials & Colours)
|
|
Max. Unwind dia
|
36" (900 mm)
|
|
Max. Wind dia
|
36" (900 mm)
|
|
Core ID at Winding & Unwind
|
3" (76 mm) Paper core
|
|
Minimum Printing repeat
|
12" (304mm) / 15" (381 mm)
|
|
Maximum Printing Repeat
|
24" (610 mm) / 40" (1000mm)
|
|
Type of Materials
|
Paper (45 to 150 gsm) Films (80 to 250 mic)
|
|
Power required
|
21 HP
|
|
Optional
|
Web Guide, Auto tension at Unwind & Winding, Air Shaft
|
|
|
|
|
|
|
|
|
